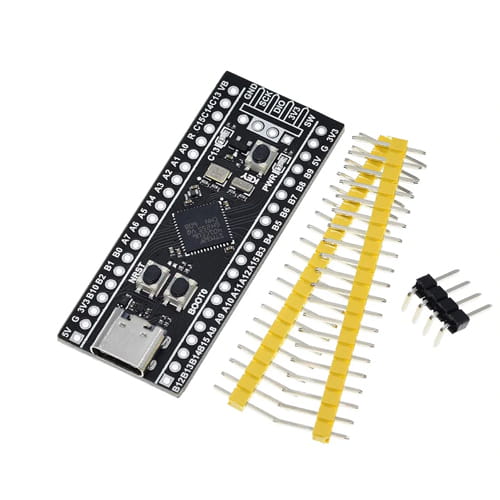

STM32F401CCU6 Black Pill ARM Cortex-M4 Development Board (84MHz, 256KB Flash)

The STM32F401CCU6 Black Pill ARM Cortex-M4 Development Board (84MHz, 256KB Flash) is a compact and high-performance microcontroller board designed for advanced embedded applications. It is based on the STMicroelectronics STM32F401CCU6 chip, featuring a 32-bit ARM Cortex-M4 core with DSP instructions and floating-point unit (FPU) for efficient and fast processing.

This board is also known as: STM32 Black Pill, STM32F401 Board, ARM Cortex-M4 Dev Board, STM32F4 Development Board, Black Pill STM32 Module.

Operating at up to 84MHz, the STM32F401 offers significantly improved performance compared to the F1 series, making it ideal for signal processing, motor control, IoT applications, robotics, audio processing, and real-time systems. It supports multiple development environments including STM32CubeIDE, Keil, Arduino IDE (STM32 core), and PlatformIO, providing flexibility for both beginners and professionals.

The Black Pill board includes essential features such as USB connectivity, multiple communication interfaces (UART, SPI, I2C), PWM outputs, ADC channels, and advanced timers, enabling complex project development in a compact form factor. Many users search for the STM32F401 Black Pill price in Bangladesh, making it a popular upgrade choice from the Blue Pill series.

• Microcontroller: STM32F401CCU6
• Core: ARM Cortex-M4 (32-bit with FPU)
• Operating Frequency: Up to 84MHz
• Flash Memory: 256KB
• SRAM: 64KB
• Operating Voltage: 1.7V – 3.6V
• I/O Pins: Up to 37 GPIO pins
• Communication Interfaces: UART, SPI, I2C, USB
• ADC: 12-bit ADC channels
• Timers: Advanced and general-purpose timers
• Programming Interface: SWD (Serial Wire Debug)
• Application: Embedded systems, robotics, IoT, DSP applications, control systems
