NodeMCU ESP8266 Deauther Custom PCB Board

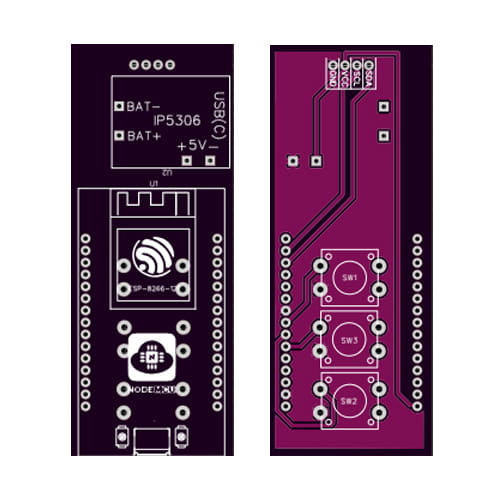

This custom PCB is specially designed for ESP8266 NodeMCU-based Deauther projects. The PCB layout is designed to support both standard and battery backup versions.

Important Notice

Please make sure your code configuration matches the PCB connection layout before purchasing. If your program pin configuration does not match this PCB design, the PCB will NOT work properly.

We do NOT provide any code or firmware with this product.

Only purchase if your existing program or firmware supports the following pin configuration:

OLED Connection

• SDA → D2
• SCL → D1

Button Connection

• Button 1 → D5
• Button 2 → D6
• Button 3 → D7

Standard Version Components

The standard version requires:

• ESP8266 NodeMCU
• 0.96" OLED Display
• 4-Pin Tactile Push Button × 3
• Female Header
• Custom PCB Board

Battery Backup Support

This PCB is also designed to support battery backup functionality.

To add battery backup, you only need these additional components:

• IP5306 Boost Module
• 3.7V 500mAh LiPo Battery
• DC ON/OFF Switch

Assembly & Connection Guide

• Standard Version Assembly Guide: [Insert Link Here]
• Battery Backup Version Assembly Guide: [Insert Link Here]

Complete DIY Packages

If you want to buy all the required components in one click, you can order any of the following packages:

• ESP8266 Deauther DIY Kit with PCB: [Insert Product Link Here]
• ESP8266 Deauther DIY Kit with PCB and Battery Backup: [Insert Product Link Here]
